Amusement Rides

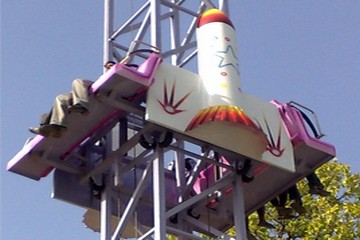

Free fall

Specifications	FREE FALL 10M	FREE FALL 22M	FREE FALL 30M
Area required	5M x 5M	7M x 7M	7M x 7M
Brake	Hydraulic operated Paddle Brake NC Type	Hydraulic operated Paddle Brake NC Type	Hydraulic operated Paddle Brake NC Type
Electric Panel	Semi/Fully automatic/ PLC operated	Semi/Fully automatic/ PLC operated	Semi/Fully automatic/ PLC operated
F. R. P.	Pigmented FRP Seats/PU Painted	Pigmented FRP Seats/PU Painted	Pigmented FRP Seats/PU Painted
Hydraulic	Standard Make	Standard Make	Standard Make
Light Load	2 H.P	5 H.P	5 H.P
Motor	15 H.P. , 3 Phase	20 H.P., 3 Phase	25 H.P., 3 Phase
Painting	Dual Epoxy Painted	Dual Epoxy Painted	Dual Epoxy Painted
Pipe / Frame	Vertical Pillar Tubular Frame Pipe	Vertical Pillar Tubular Frame Pipe	Vertical Pillar Tubular Frame Pipe
Ride Duration	2 Minutes Variable	3 Minutes Variable	3 Minutes Variable
Seating Capacity	10 Adults	10 Adults	10 Adults
Speed	180M / Minute Max	250M/ Minutes Max	350M / Minute Max
Structure Height	10M	22M	30M
Weight	5 Ton	7 Ton	11 Ton
