Amusement Rides

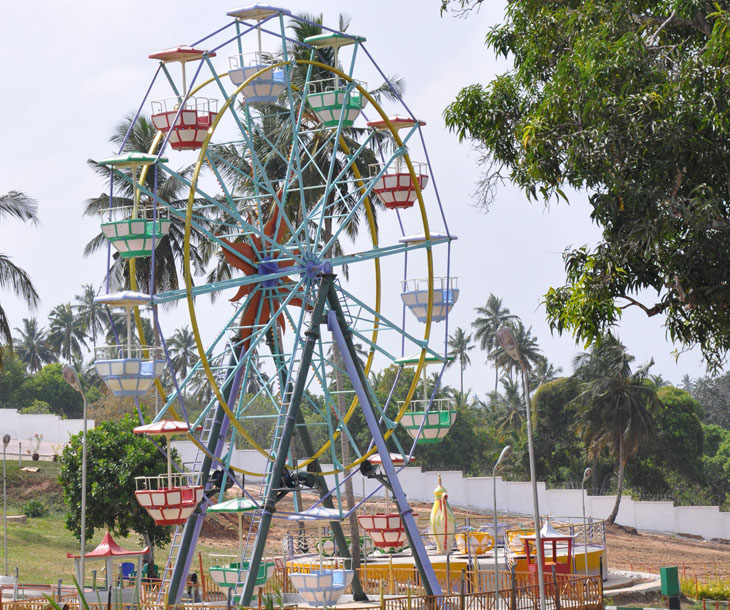

ferris wheel – 33m

It is a age old family ride, still a star attraction for any Park with a very high seating capacity giving a good turn around for those peak days. Gondolas are aesthetically designed like cups with seating capacity of 4 Adults or a family each. The ride is well decorated and lit and gives a feel of a ball rolling in the dark.

Specifications	Ferris Wheel – 15	Ferris Wheel -21	Ferris Wheel - 27
Age Group	Family Ride	Family Ride	Family Ride
Area required	12M x 14M	13M x 19M	15M x 25M
Capacity per /Hr	624 Persons	728 Persons	980 Persons
Diameter of Ferris Wheel	14 M Dia	18M	21 M Dia
Drive	Friction Drive	Friction Drive	Friction Drive
Handle Locking System	Manual	Manual	Manual
Height	15M	21M	27 M
Light Load	10 K.W., 230 V.A.C	15 K.W 400 V.A.C	20 K.W., 400 V.A.C
Loading / Unloading time Speed	3 Minutes	3 Minutes	3 Minutes
No. of Gondolas	12 Animated Carfts	14 Crafts	20 Animated Crafts
Power Required	11.0 K.W	15.0 K.W	22.0 K.W
Ride Time	90 Sec./ Variables	90 Sec./ Variables	90 Sec./ Variables
Seating Capacity	48 Persons	56 Persons	80 persons
Speed	8 R.P.M	6 R.P.M	4 R.P.M
Voltage Required	415 Volt A.C	415 Volt A.C	415 Volt A.C

Note:- Specifications might have slight variation to further improvement in R&D without any further notice.
